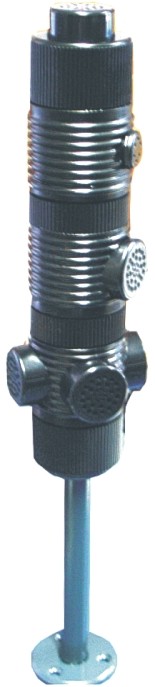

ČeštinaBL-06 Modular beacon (tower light)
BL-06Product code: %% completeCode %%
Power Supply
Voltage type
Console type
Acoustic-LED light segment
Function - 1 pole
Closing with CUPOLA or ACOUSTIC SEG. or COVER
Function
We offer a custom-made configuration
| Operating voltage | 12V, 24V AC/DC, 230V AC |
| Nominal current | max. 60mA |
| IP protection | IP65/IP30 |
| Connecting conductor diameter | 0,5 mm² |
| LED colour | R, G, B, Y, W, O |
| Operating temperature | -20.. +50°C |
| Diameter | 54 mm |
| Fixing | direct fixing, stem, wall console mounting |
| Number of independently controlled LED arrays in the indicator tower | 7 |
| Current suppression | 3mA |
| LED segments can be built in variations | glowing, flashing, rotating, stroboscope LED |
| Flickering LED segment | frequency 1,5 Hz |
| Frequency of discontinuous indication | 2,5kHz +- 0,5kHz; 3,5 +- 0,5kHz |
| Acoustic indication | piezo transducer 92dB, siren 96-100dB |
| Fixing options | stem 15, 30, 45 cm / wall console mounting / direct mounting on the bottom of the device |
| Fucnction | Omnidirectional visual signalling with permanent, intermittent, rotating or multifunctional LED glow and stroboscopes. Acoustic signalling stationary, intermittent, two types of buzzers. The sections are produced in red, green, yellow, orange, white and |
| Warning | Stopky H15, 30, 45 a konzoly HW jsou dodávány v povrchovém provedení černý komaxit. Na zakázku upravíme délku stopky, změníme povrchovou úpravu stopky, např. (modrý chromát - zinek). Pro napětí 230V je nutno pro každá 2 světelná pole přidat modul číslo 1. |
