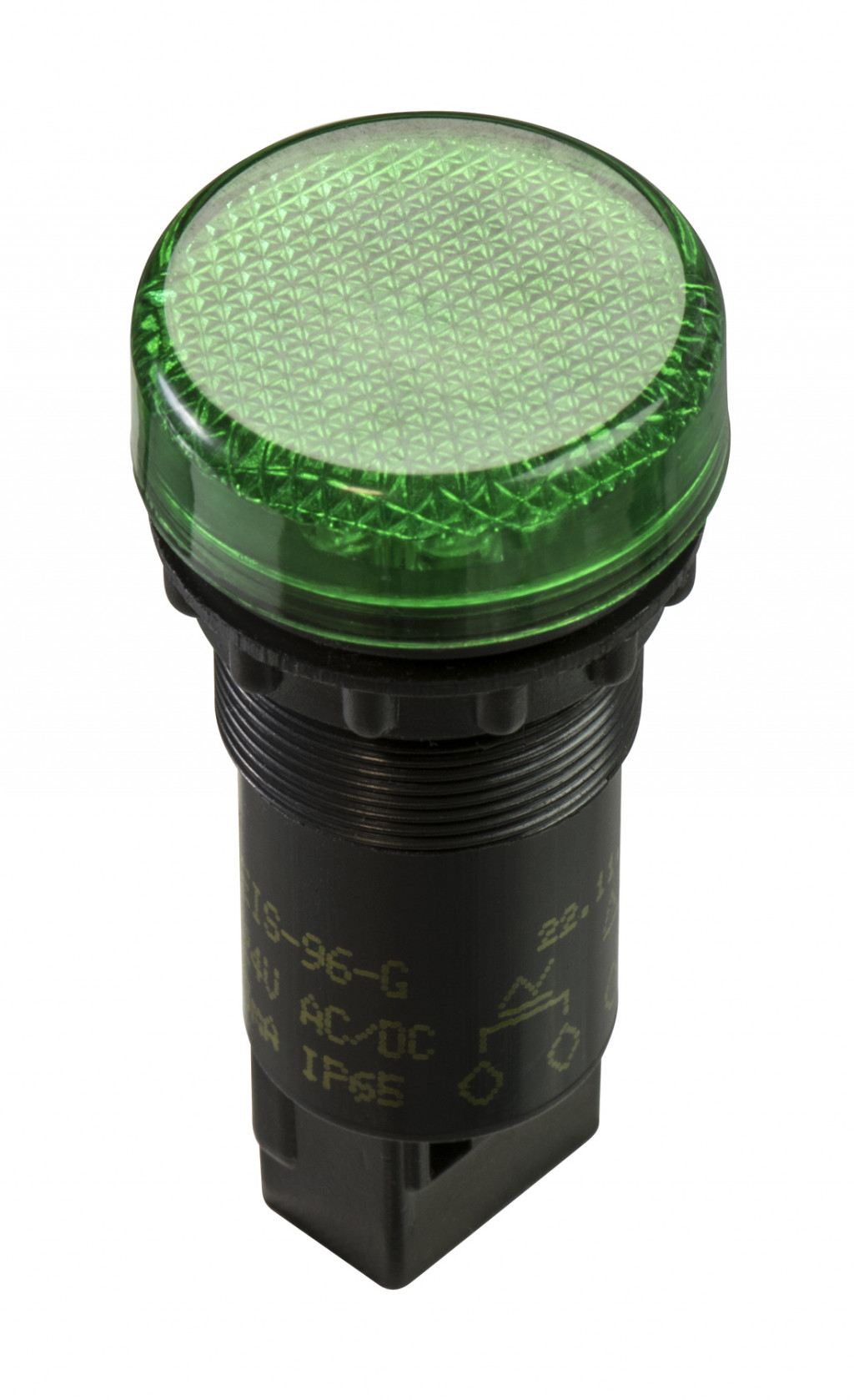

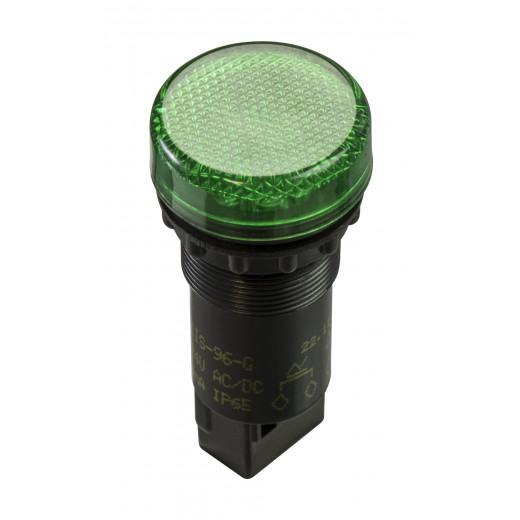

EIS-99 1 pc. LED

Product code: %% completeCode %%
Colour
Function
Colour 2
Function 2
Power Supply
Voltage type
Test
We offer a custom-made configuration
Your customization
Product code:  EIS-99 1 pc. LED-R-NE-NE-NE-12V-AC-NE %% completeCode %%
We will help you with your purchase
Contact us:
order@eleco.cz+420 777 029 105
EIS-99 1 pc. LED
Operating voltage12-60V AC, DC, AC/DC 110-230V AC, DC
Nominal currentmax. 20mA
IP protectionIP65
Panel thicknessmax. 10 mm
Connecting conductor diameter2,5 mm²
Holes spacingminimal 31 mm
LED colourR, G, B, Y, W, O
Dimensionsø30 mm, length 67 mm, length behind the panel 57 mm
Operating temperature-25.. +55°C
Mounting hole22 mm

FucnctionIndicators are produced with glow, flash and two-state functions.

WarningLED 2 cannot be combined with Test function (T)
