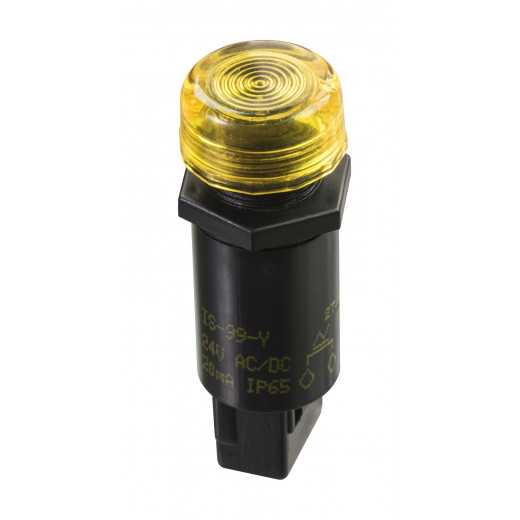

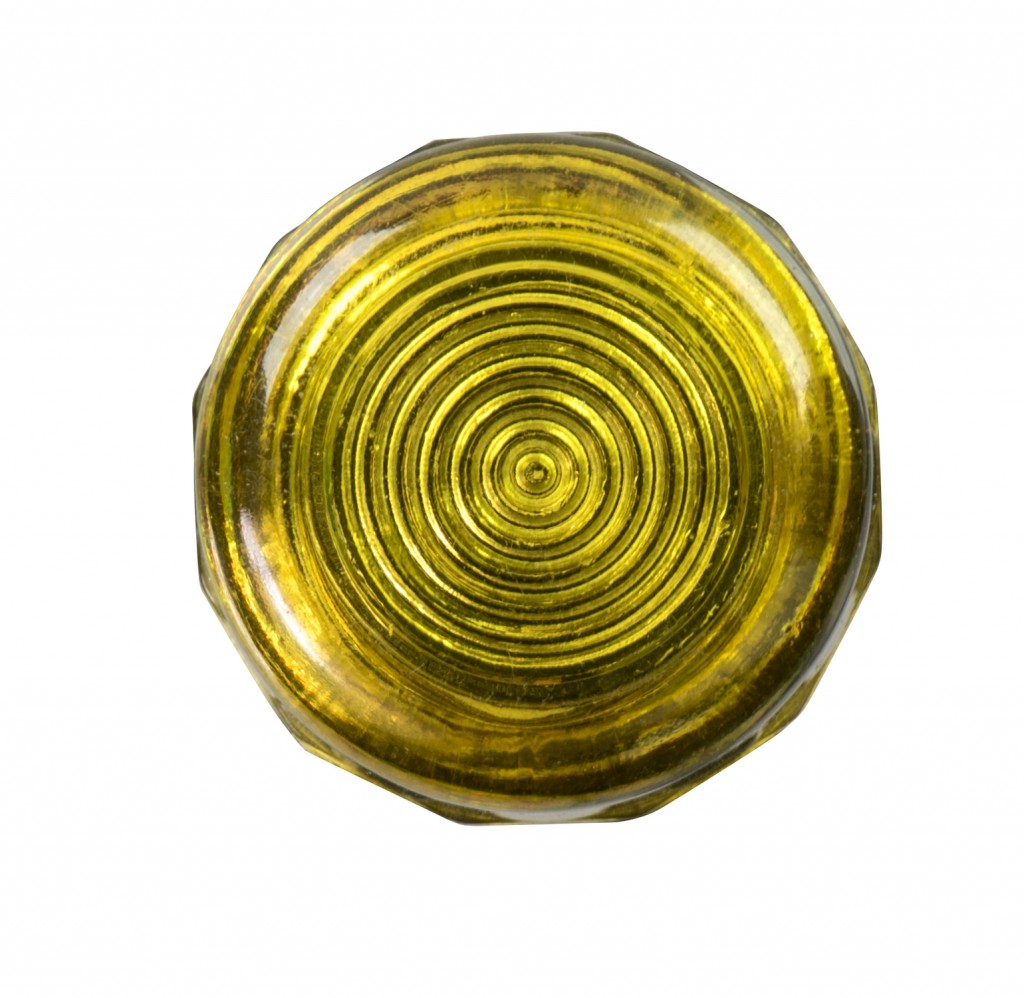

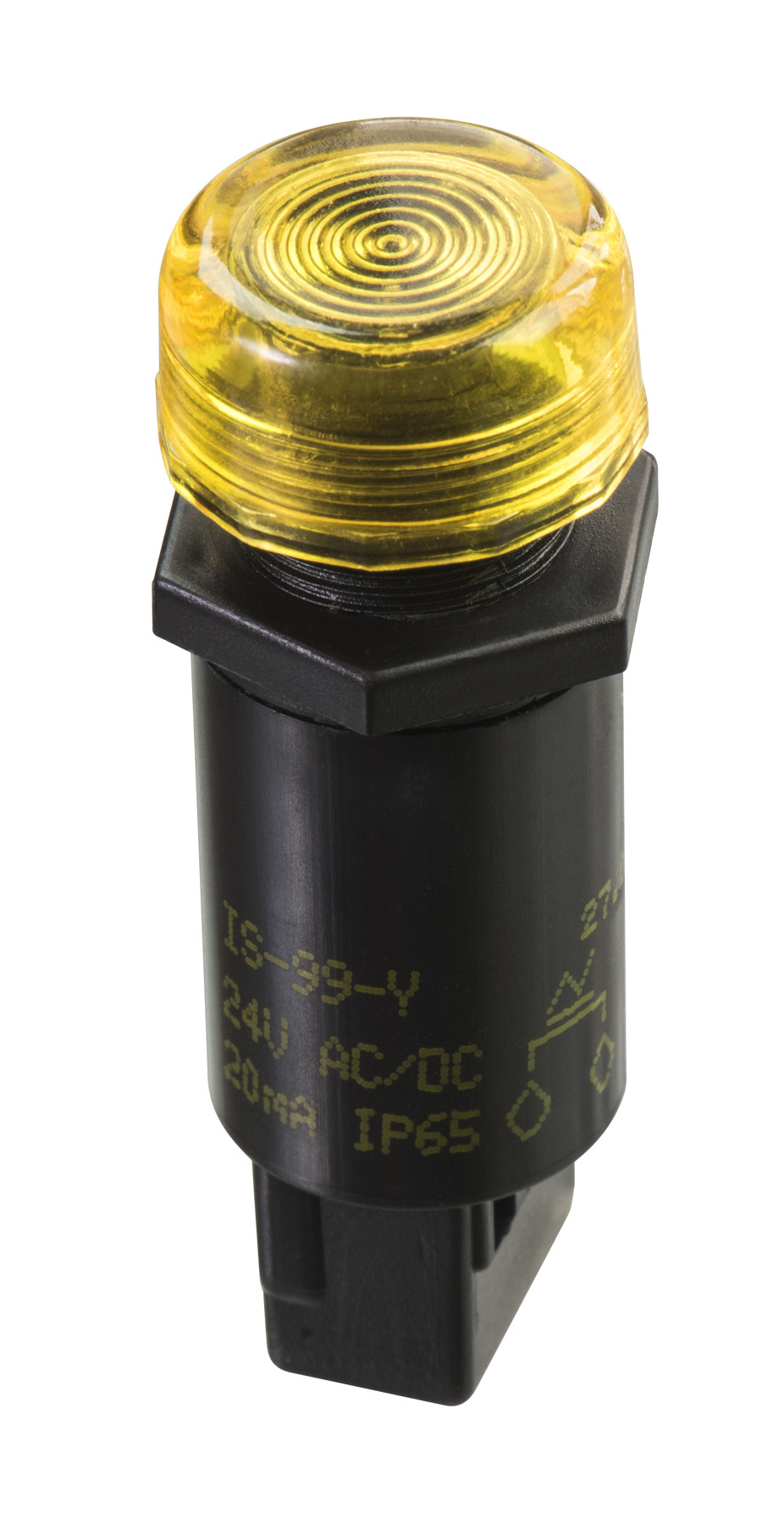

IHS-95 3 pcs. LED

Product code: %% completeCode %%
Colour
Function
Colour 2
Function 2
Power Supply
Voltage type
Test
We offer a custom-made configuration
Your customization
Product code:  IHS-95 3 pcs. LED-R-NE-NE-NE-12V-AC-NE %% completeCode %%
We will help you with your purchase
Contact us:
order@eleco.cz+420 777 029 105
IHS-95 3 pcs. LED
Operating voltage12-230V AC, DC, AC/DC
Nominal currentmax. 20mA
IP protectionIP65
Panel thicknessmax. 8 mm
Connecting conductor diameter2,5 mm²
Holes spacingminimal 26 mm
LED colourR, G, B, Y, W, O
Dimensionsø22 mm, length 65 mm, length behind the panel 48 mm
Operating temperature-25.. +55°C
Mounting hole16 mm

FucnctionThe IHS-95 type (with 3 diodes) is produced in the glow or flash versions. The tube of two -state indicators is 3 mm longer.

WarningThe tube of two-state indicators is 3 mm longer. LED 2 cannot be combined with Test function (T)
