SUS-95-L

Product code: %% completeCode %%
Colour
Function
Colour 2
Function 2
Power Supply
Voltage type
We offer a custom-made configuration
Your customization
Product code:  SUS-95-L-R-NE-R-NE-12V-AC %% completeCode %%
We will help you with your purchase
Contact us:
order@eleco.cz+420 777 029 105

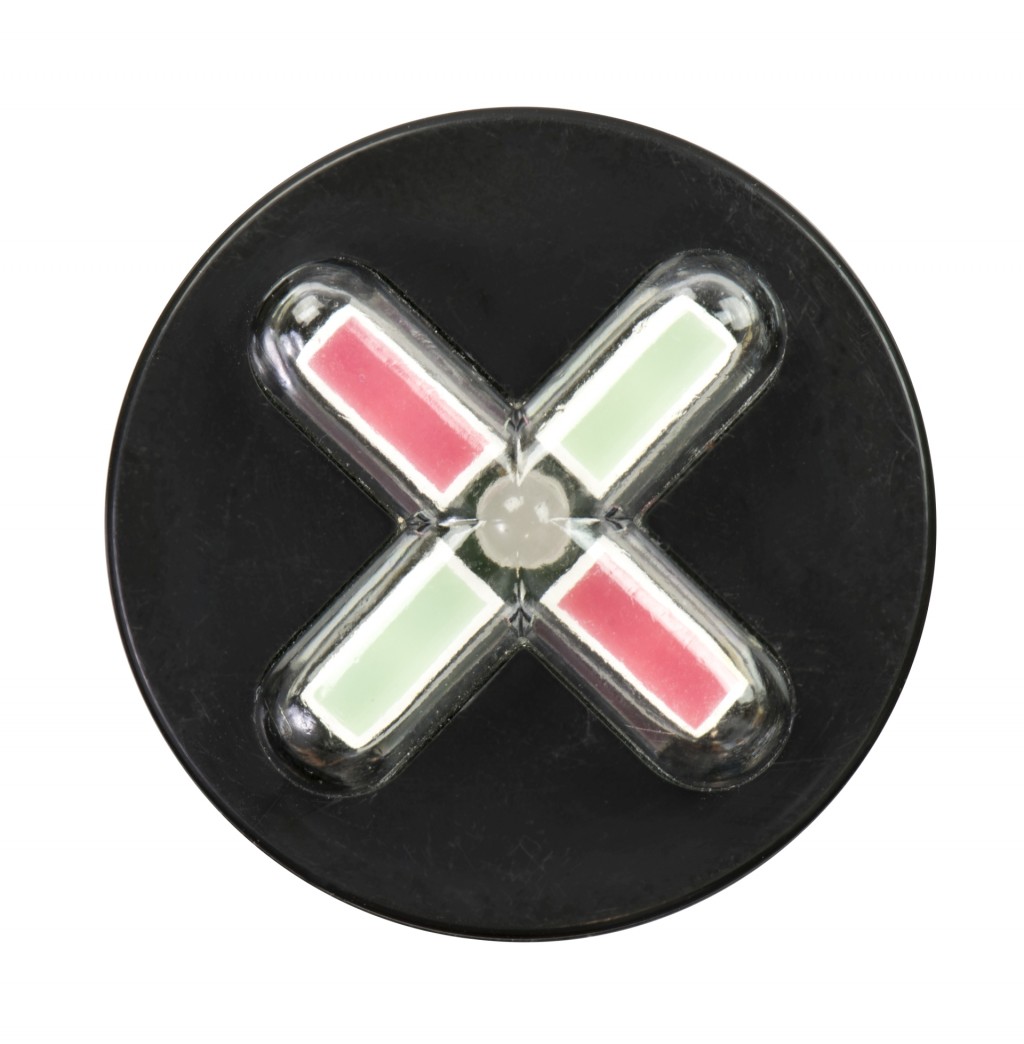

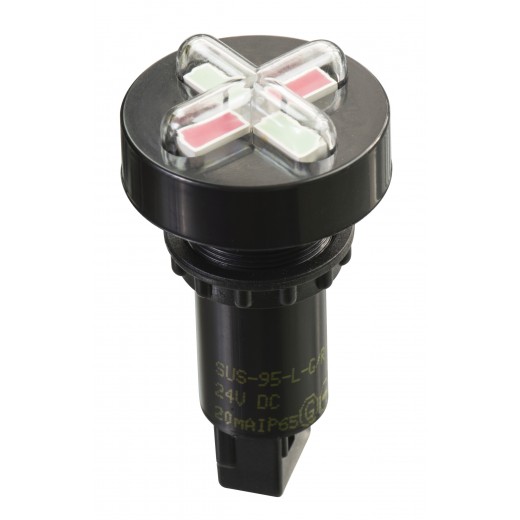

SUS-95-L
Operating voltage24V, 48V, 60V AC, DC
Nominal currentmax. 20mA
IP protectionIP65
Panel thicknessmax. 12 mm
Connecting conductor diameter2,5 mm²
Holes spacingminimal 40 mm
LED colourR, G
Dimensionsø39 mm, length 75 mm, length behind the panel 57 mm
Mounting hole22 mm

WarningThe “L” version with LED strip is produced only in red/green colour combination. For voltage 110 V DC and higher, indicators are equipped with an outer resistance multiplier. Upper cover of the indicator may be supplied in various colour designs, standard
Ask us
